12.04 kWp total capacity distributed across multiple roof areas.
Bespoke solar, battery, EV charging & electrical systems across Harrogate and North Yorkshire.
Design My SystemRossett Green Lane, Harrogate
Solar PV & battery storage in Harrogate
A substantial multi-roof system combining all-black panels, battery storage, optimisation and intelligent hot-water control.
12.04 kWpsolar PV15 kWhbattery storage28all-black panels
The project
A complete energy system across multiple roof areas.

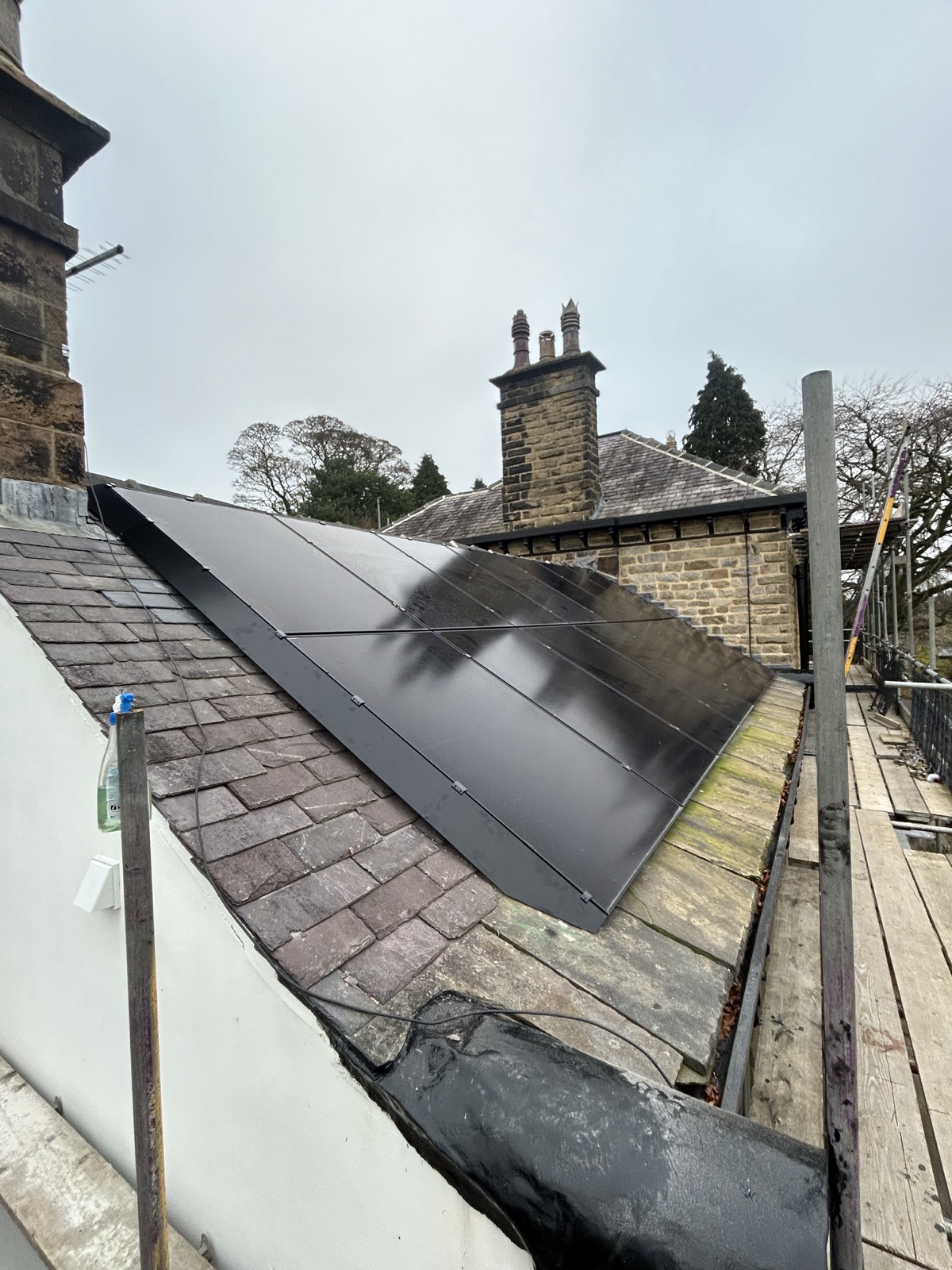

Renewable Specialists designed and installed this comprehensive solar PV and battery system on Rossett Green Lane in Harrogate. Twenty-eight LONGi 430 W all-black panels create a 12.04 kWp array across the property's available roof areas.

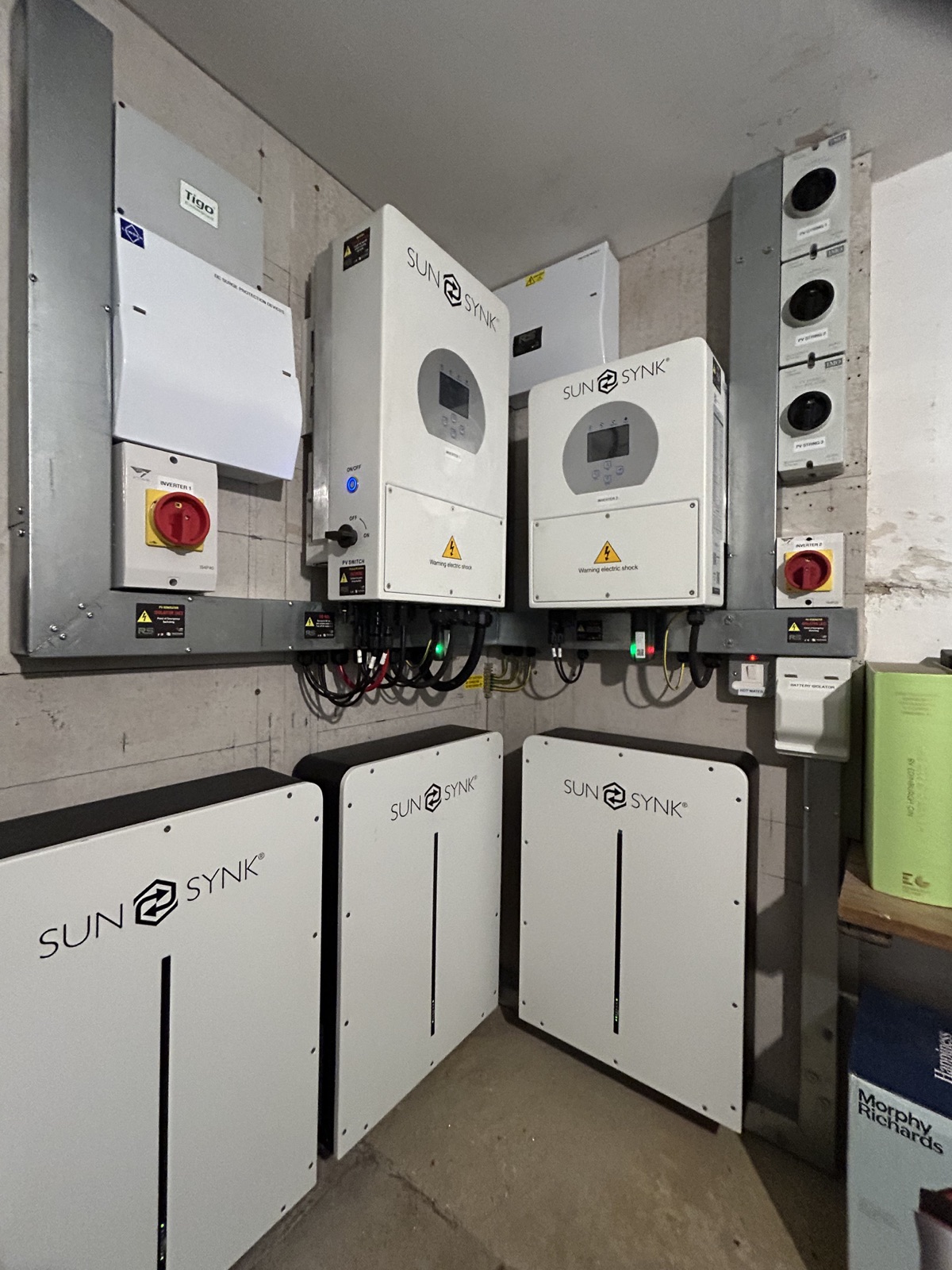

The system uses Sunsynk 8 kW and 3.6 kW inverters with three 5 kWh Sunsynk batteries, providing 15 kWh of total storage. Tigo optimisation supports performance across the different roof elevations, while a myenergi eddi directs suitable surplus generation towards hot water.
System specification
Designed for performance, storage and protection.
Every element was selected to help the property make effective use of a large, carefully arranged solar array.
Dual inverter arrangement designed around the scale and layout of the array.
15 kWh total storage capacity for using more generated energy later.
Module-level optimisation supporting performance across the varied roof elevations.

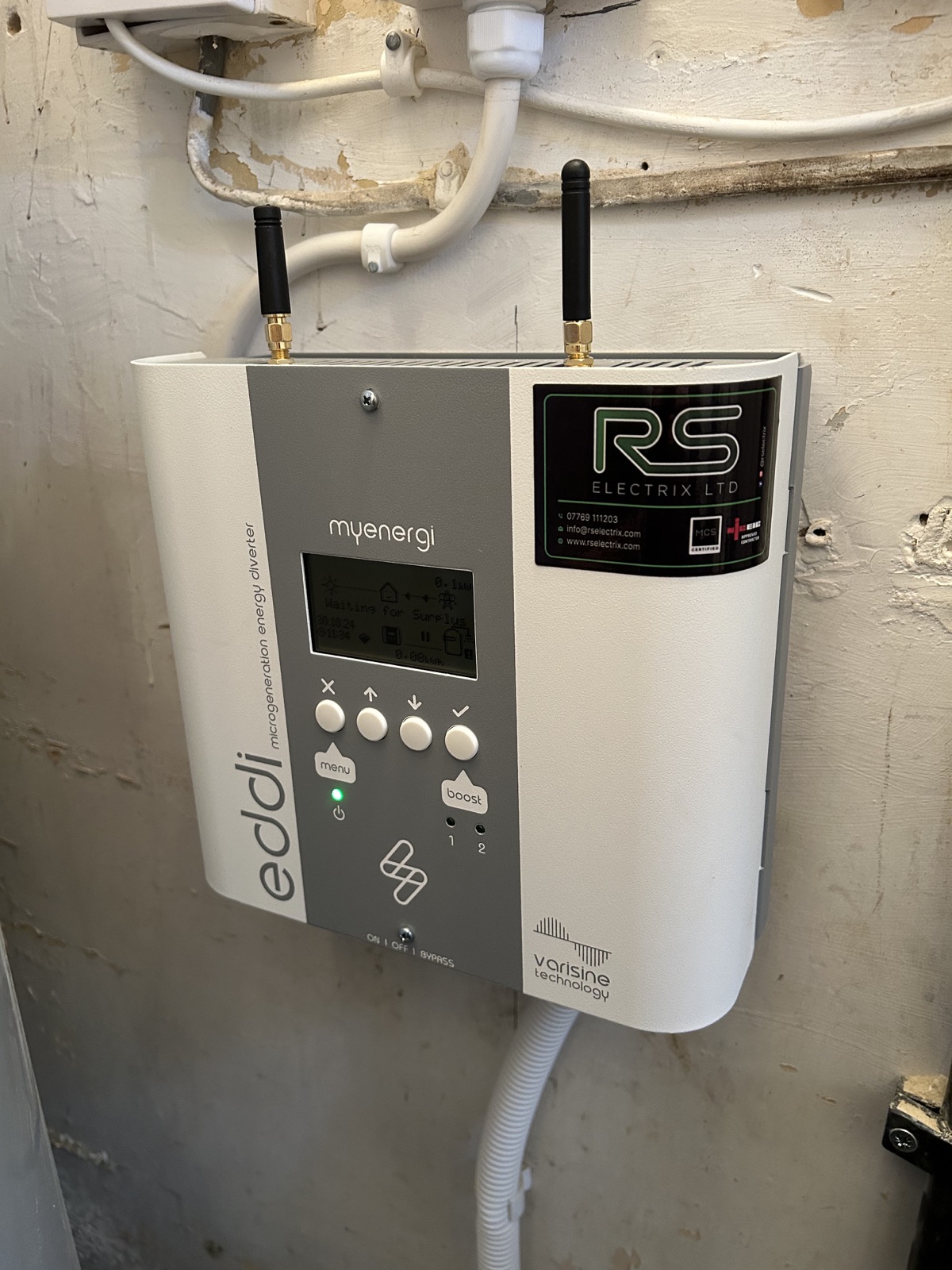

Uses suitable surplus solar generation to support domestic hot-water heating.

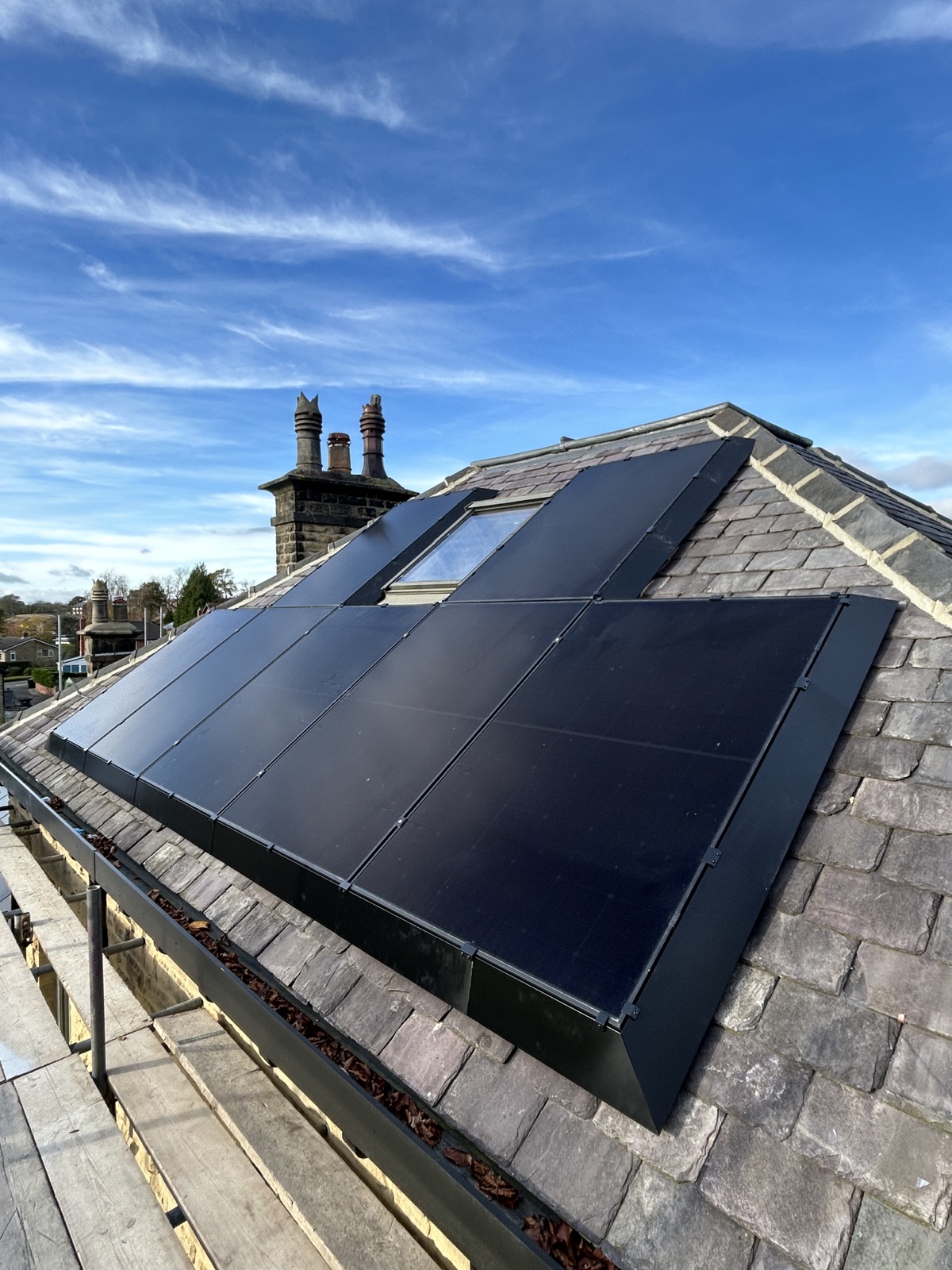

A neat perimeter barrier that helps deter birds from nesting beneath the panels.
Installation gallery
The completed Rossett Green Lane system.
The aerial view reveals the full scale of the installation, with close-up photographs showing the carefully finished equipment and panel protection.
The result
A high-capacity system with a clean roof finish.
The finished installation combines strong solar generation, substantial battery capacity and intelligent control while respecting the appearance and different rooflines of the property.
- 12.04 kWp of all-black solar PV
- 15 kWh of Sunsynk battery storage
- Optimised across multiple roof areas
- Hot-water diversion and bird protection included
