Large ground-mounted solar & battery system in North Deighton
A substantial three-phase installation combining 18.2 kWp of Solarport-mounted solar with 100 kWh of rack-mounted Fogstar battery storage.
18.2 kWpsolar PV40LONGi panels100 kWhbattery storage
The project
High-capacity generation and storage, engineered as one system.
Renewable Specialists installed forty LONGi all-black panels on a Solarport ground-mounted system at this North Deighton property. Twenty 430 W panels and twenty 480 W panels provide a combined solar capacity of 18.2 kWp across two long, low-profile rows.
The three-phase energy system includes two 10 kW SolarEdge string inverters, two 12 kW Sunsynk hybrid inverters and twenty rack-mounted 5 kWh Fogstar battery modules. The equipment is organised within galvanised steel cable containment to create a robust, serviceable installation with 100 kWh of total storage.
System specification
Three-phase power on a larger scale.
Generation, conversion, storage and containment were designed together for reliable operation and straightforward long-term maintenance.

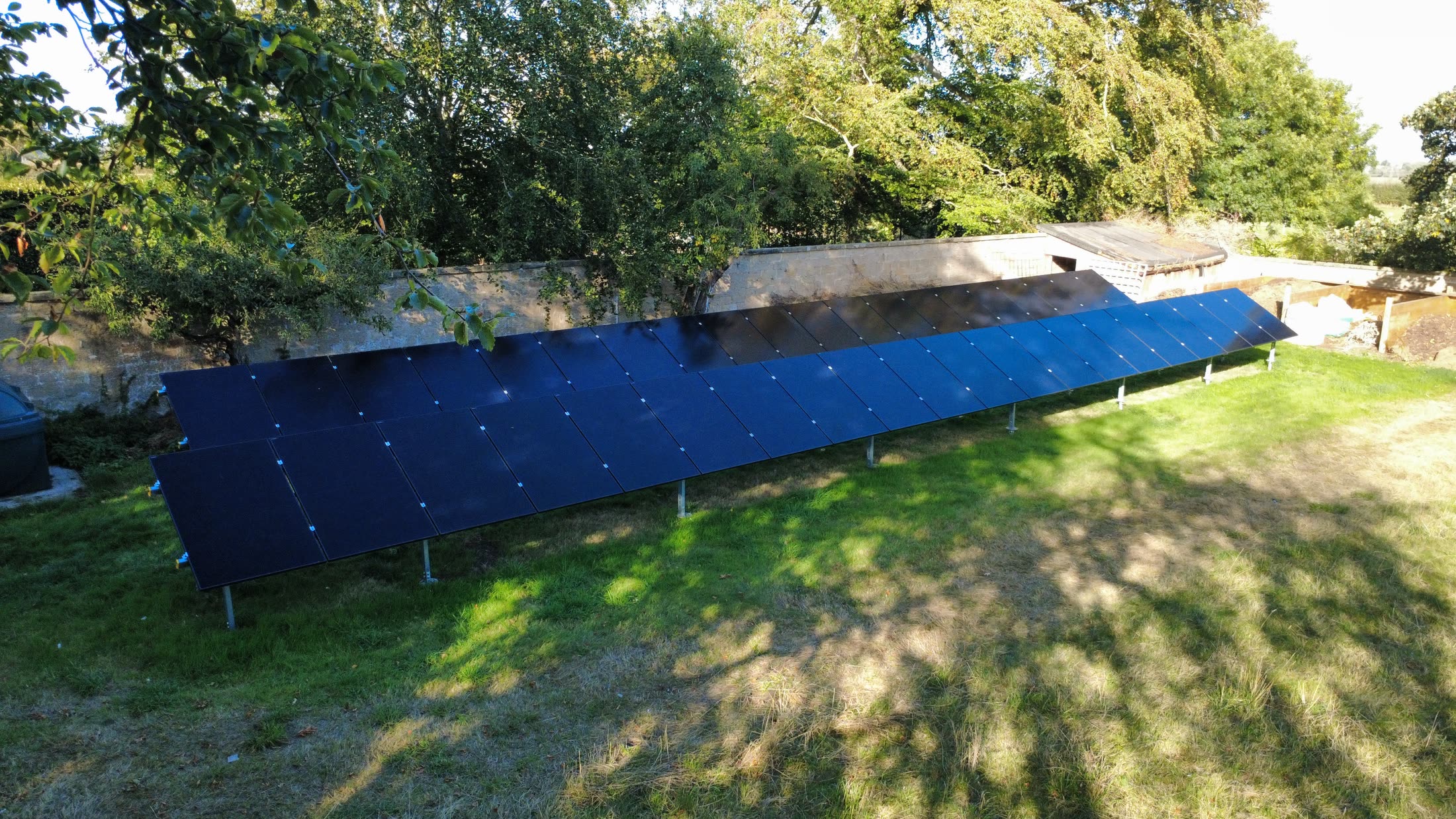

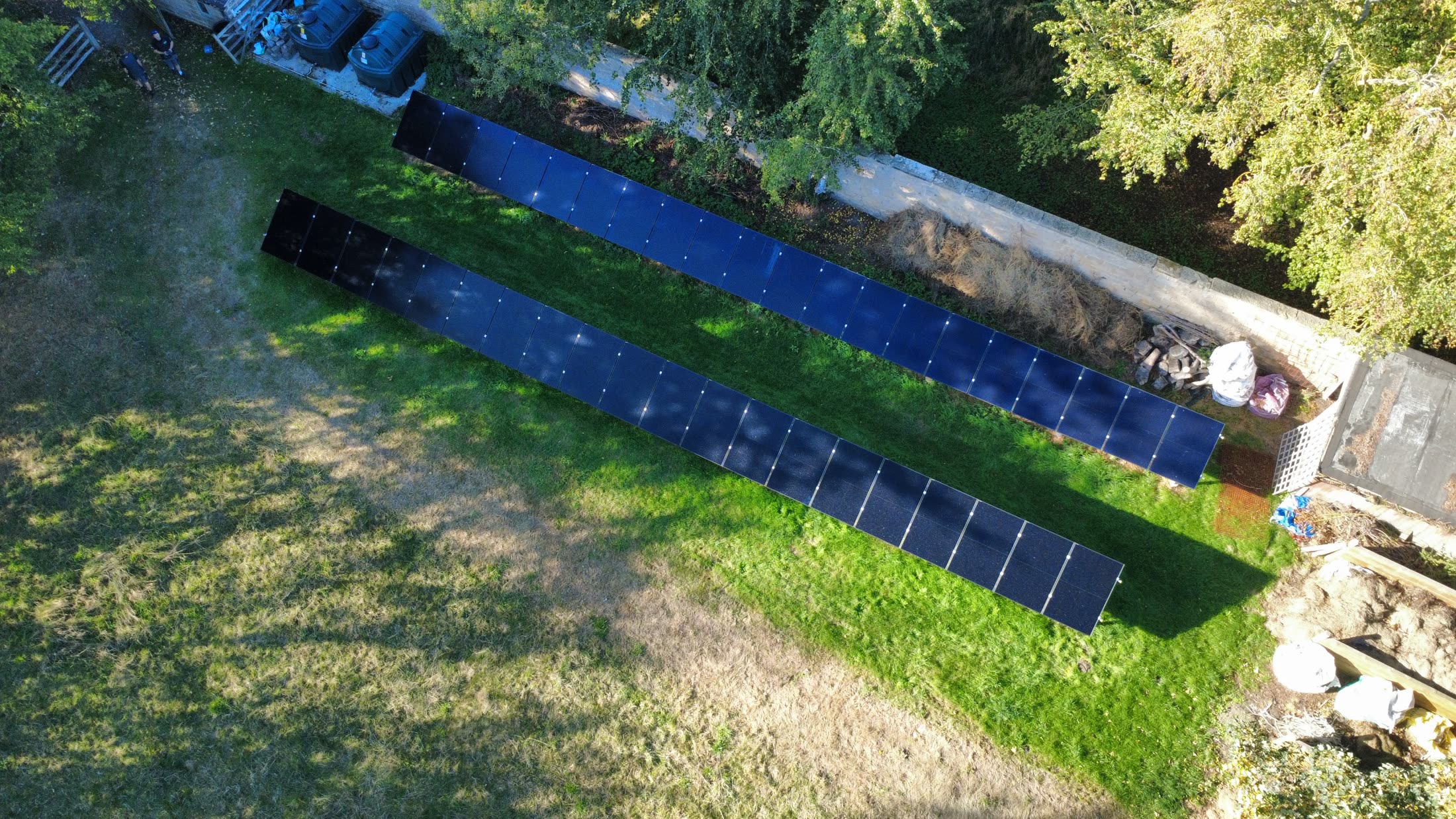

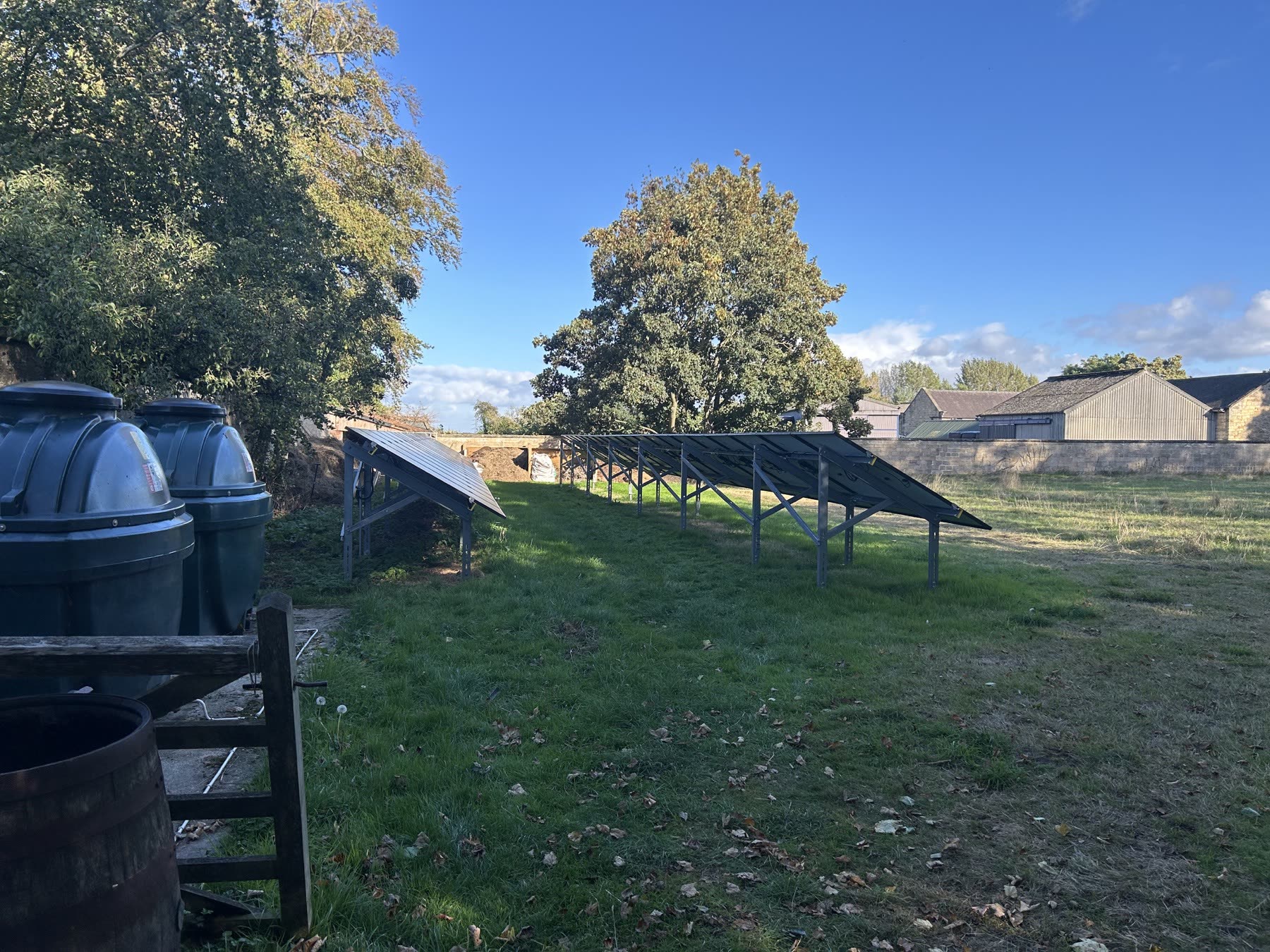

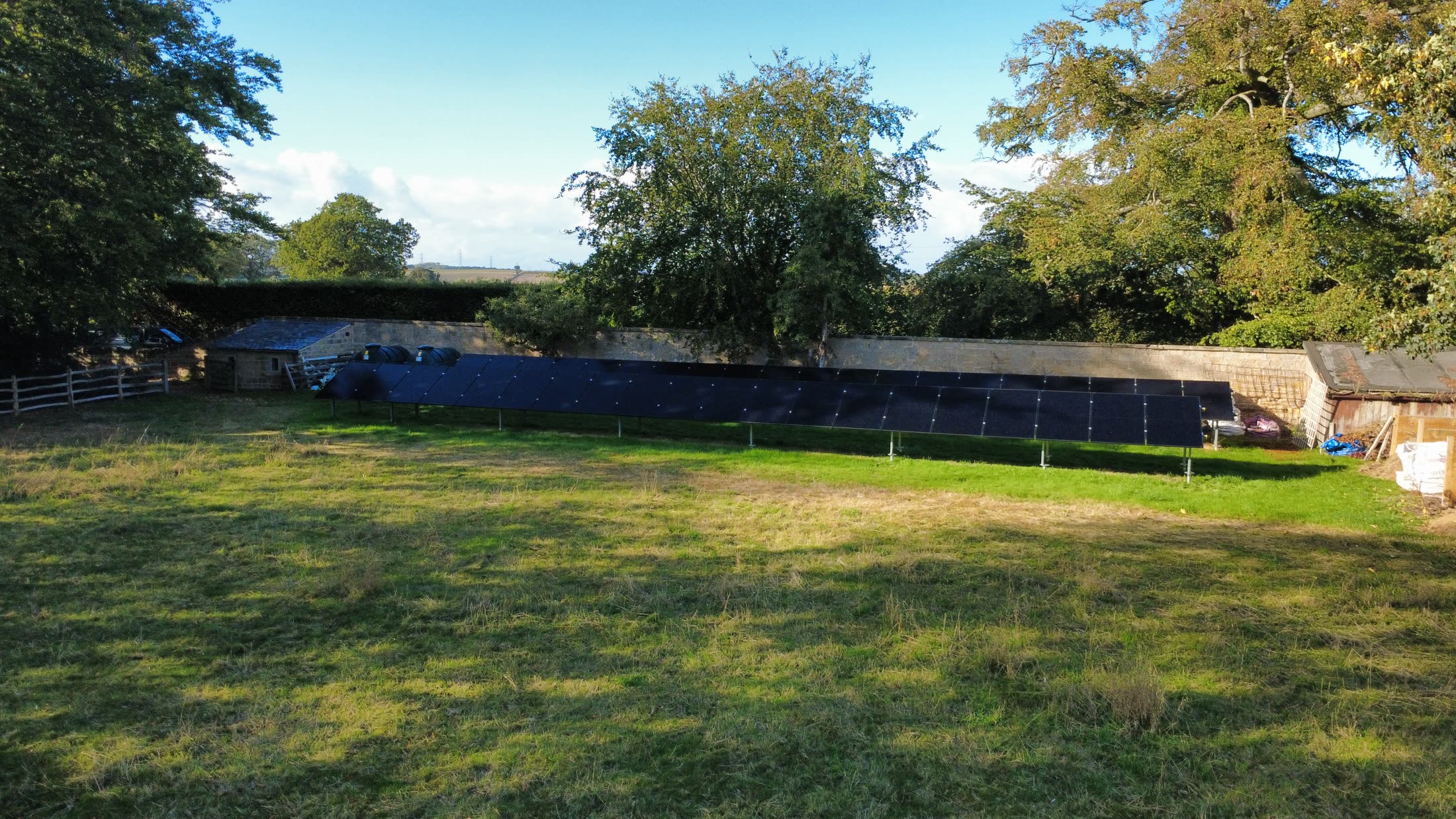

Two long rows provide a secure, low-profile ground-mounted array within the property.

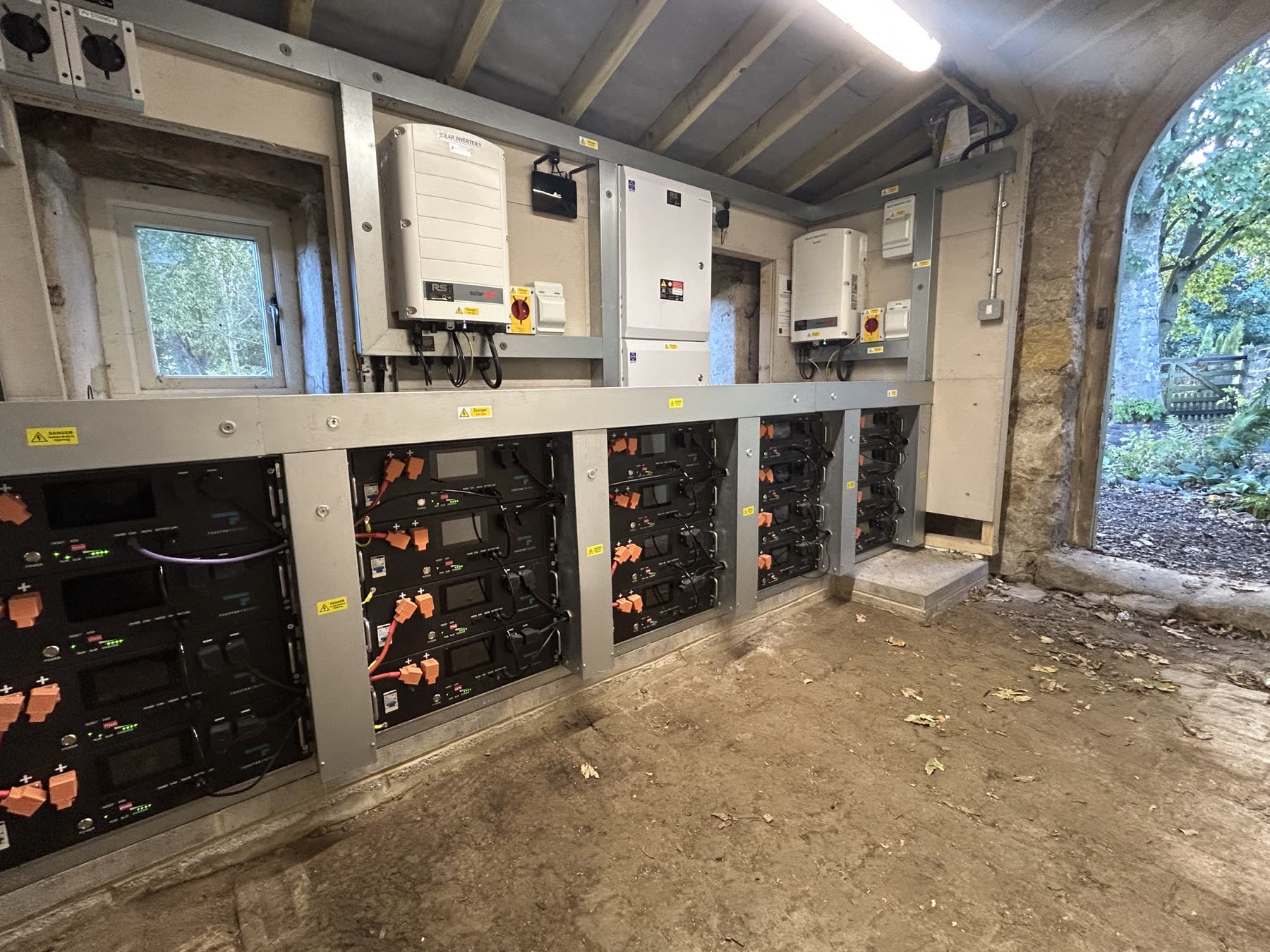

The pair of three-phase string inverters manages power from the ground-mounted solar array.

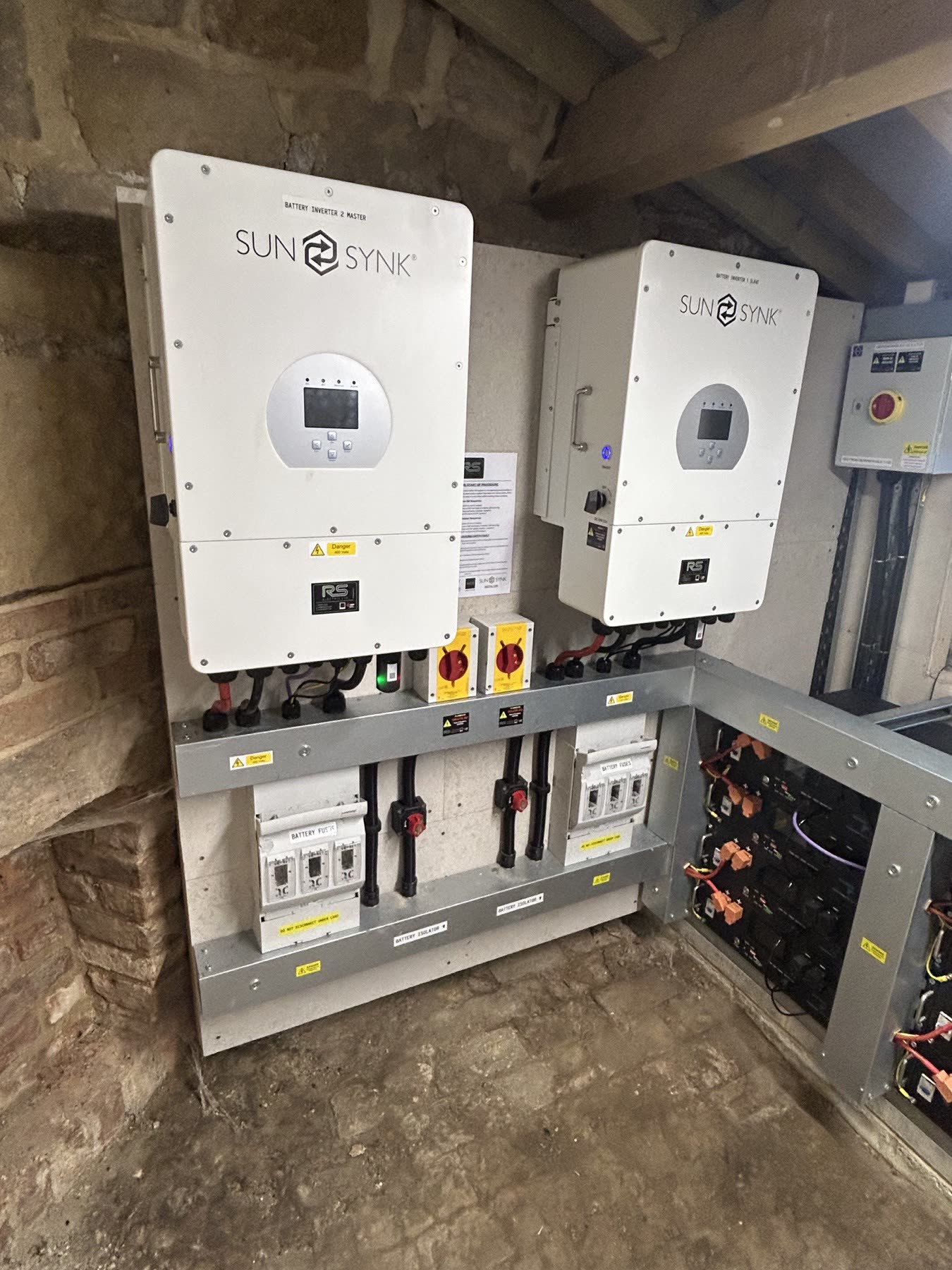

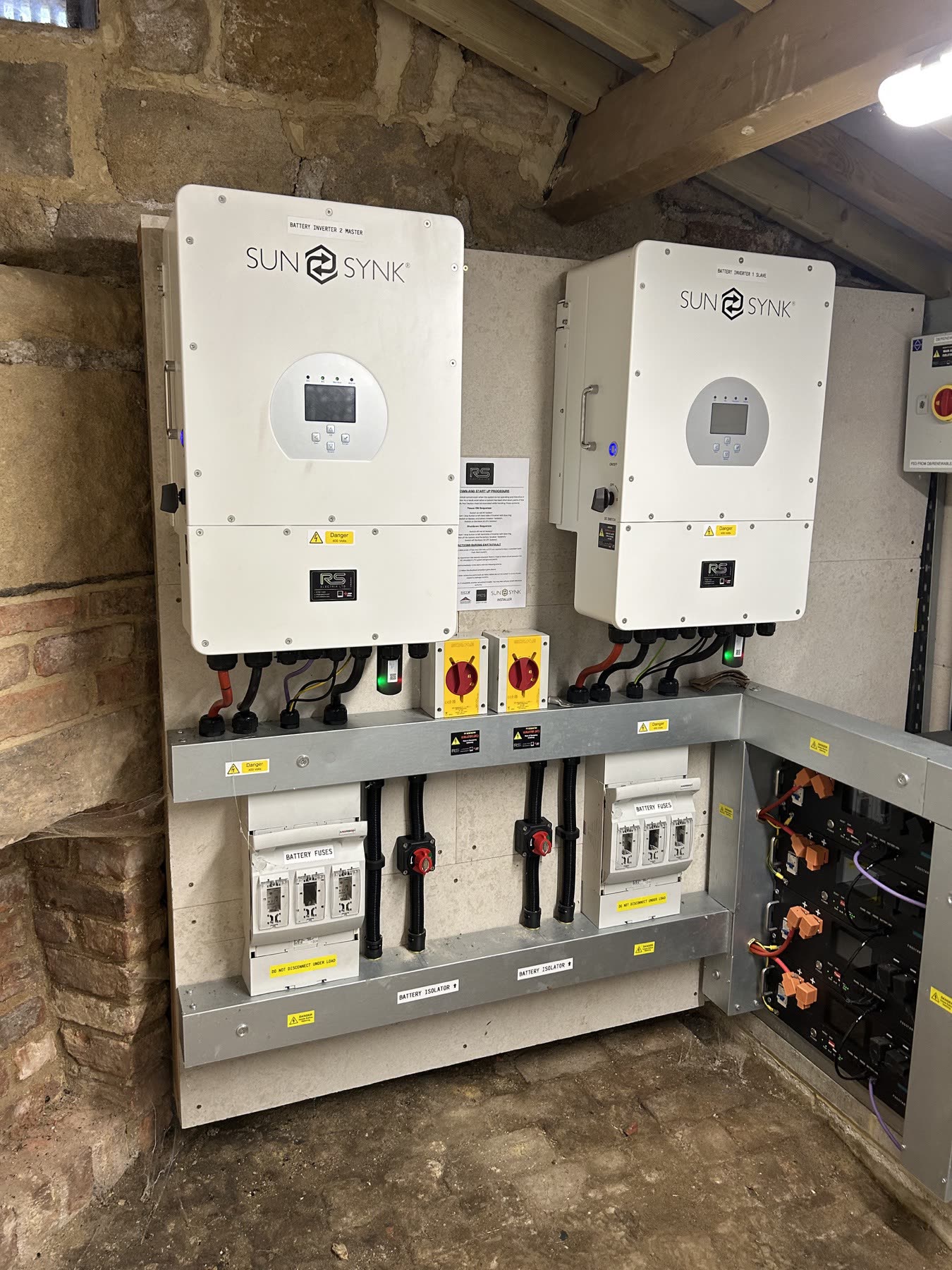

High-capacity hybrid inverters coordinate the battery system and three-phase electrical supply.

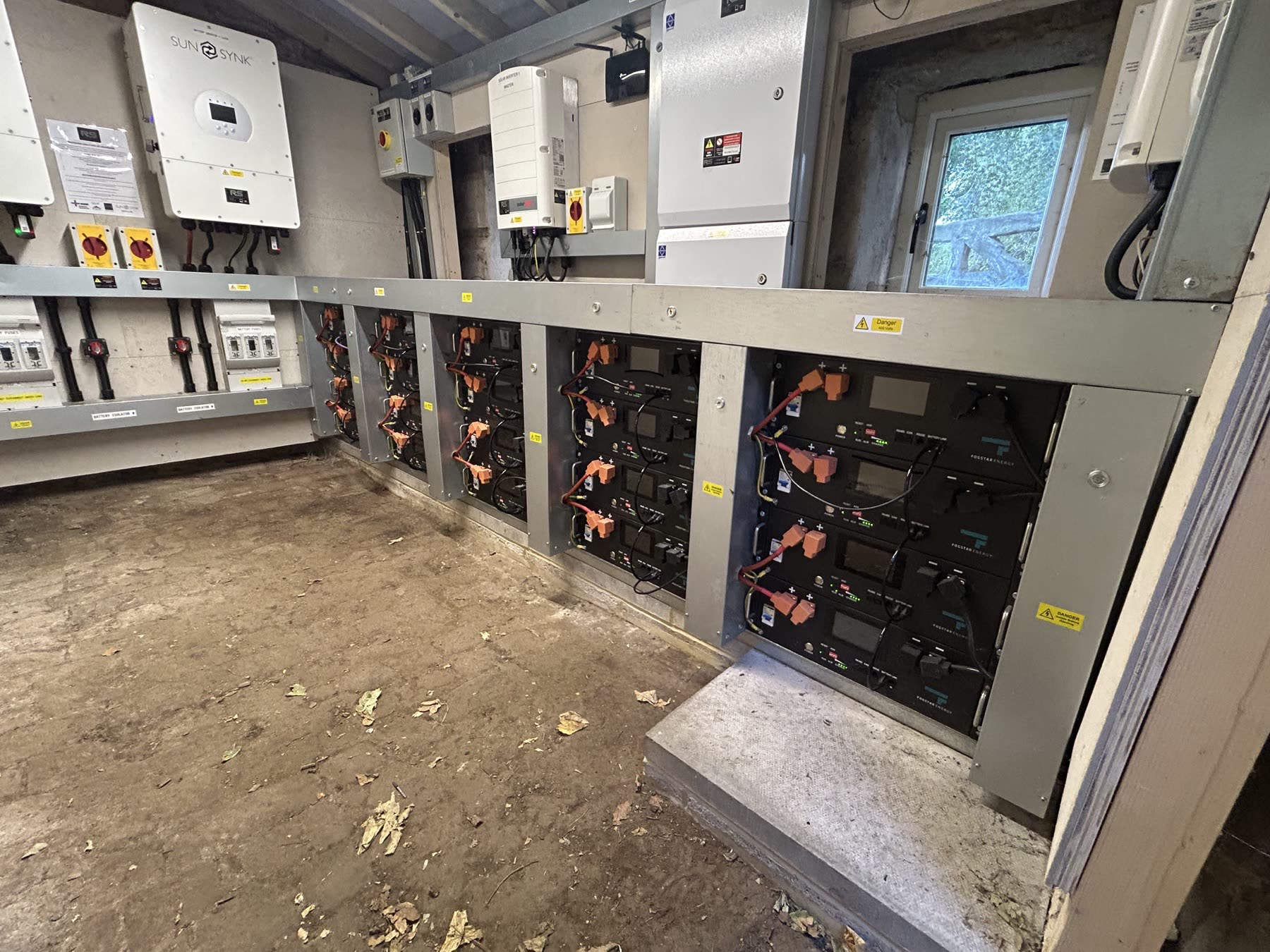

Rack-mounted battery modules provide 100 kWh of total energy storage.
Purpose-built steel containment protects cabling and keeps the plant room organised and serviceable.
Installation gallery
The completed North Deighton system.

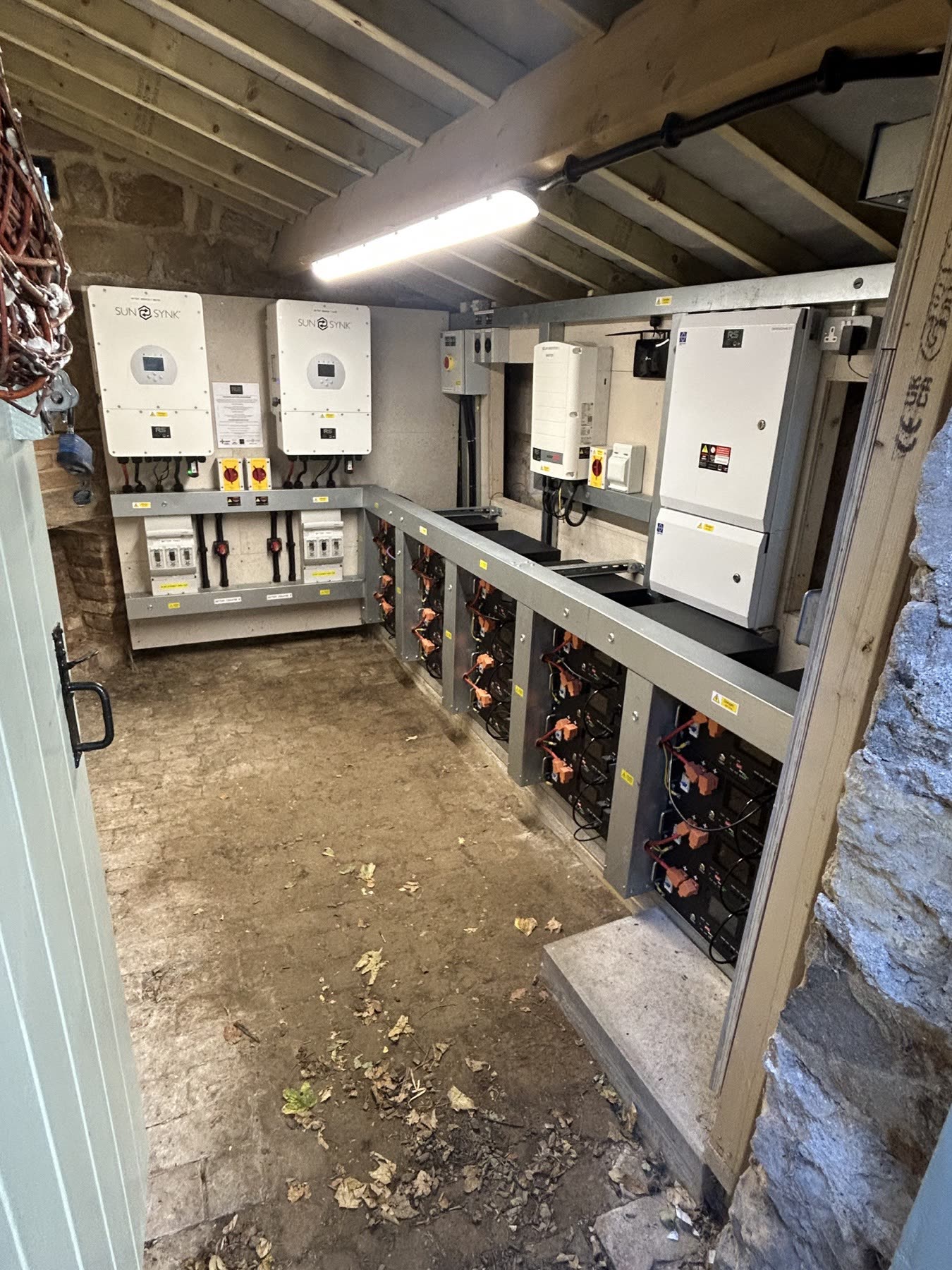

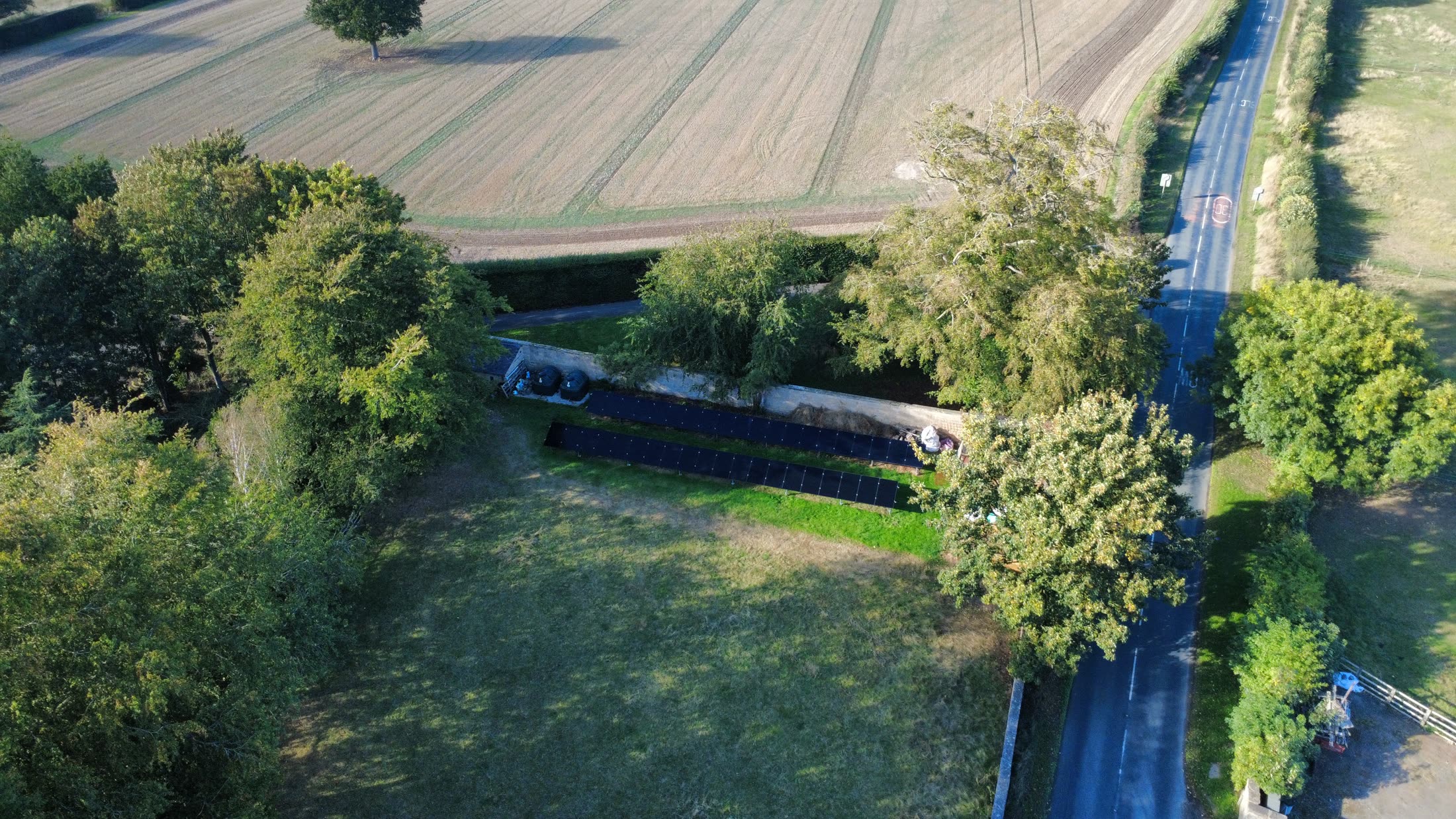

Aerial views show the scale of the Solarport array, while the plant-room photographs reveal the inverters, battery modules and galvanised containment behind it.
The result
A substantial energy system built for three-phase demand.
The completed installation combines 18.2 kWp of ground-mounted solar with 100 kWh of storage, supported by four three-phase inverters and a carefully organised galvanised containment system.
- 18.2 kWp across 40 LONGi all-black panels
- Solarport ground-mounted system
- 100 kWh of rack-mounted Fogstar storage
- Four three-phase solar and hybrid inverters
