Design My SystemCopgrove, North Yorkshire
Large-scale solar PV & battery storage in Copgrove
A high-capacity energy system combining 55 all-black panels, 40 kWh of battery storage and module-level optimisation.
25.05 kWpsolar PV40 kWhbattery storage55all-black panels
The project
Substantial generation and storage, carefully integrated.

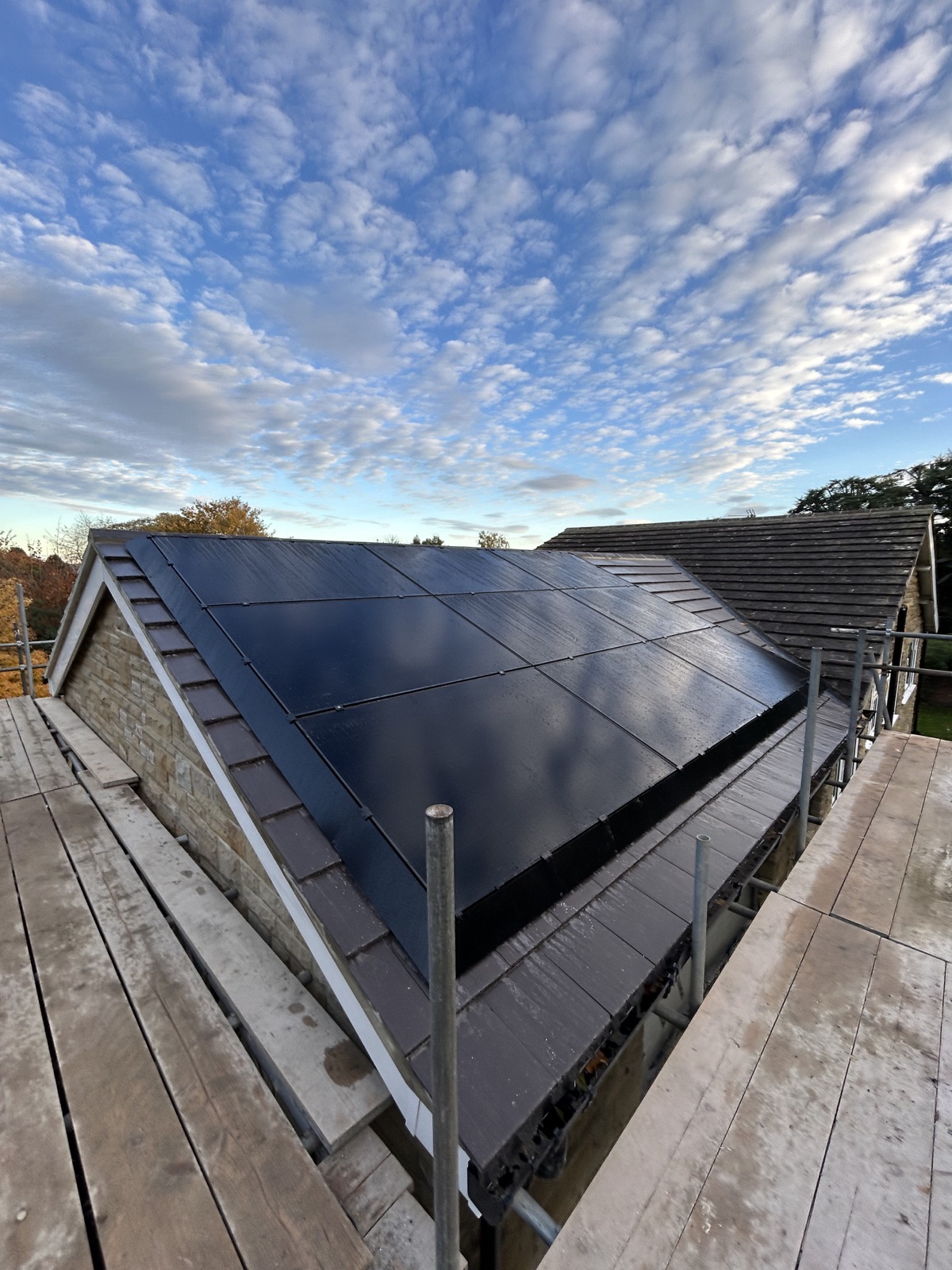

Renewable Specialists designed and installed this substantial solar PV and battery system in Copgrove. The 25.05 kWp array combines twenty LONGi 430 W all-black panels with thirty-five AIKO 470 W all-black panels across the property's available roof areas.

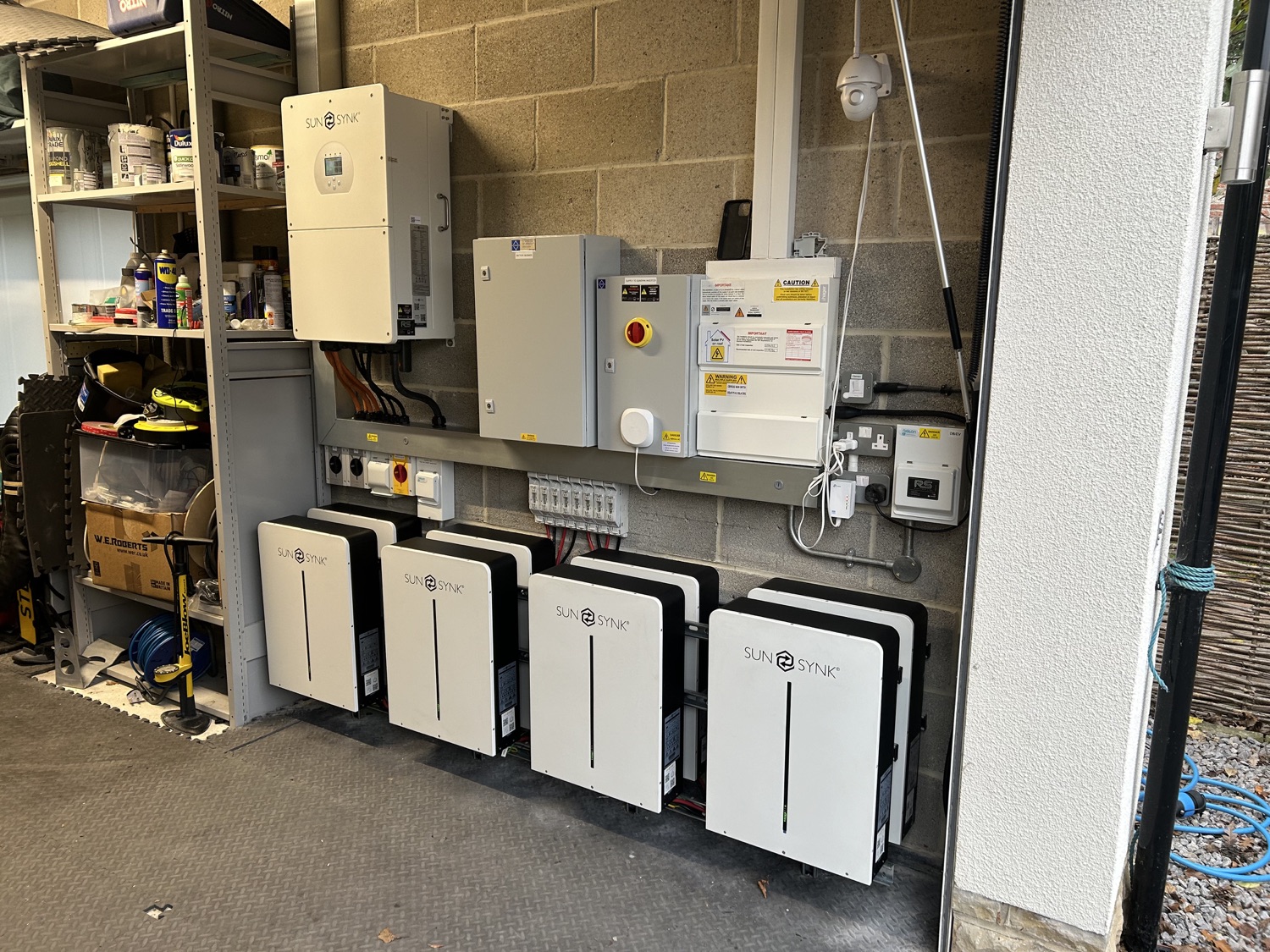

A Sunsynk Max 16 kW hybrid inverter manages the system alongside eight 5 kWh Sunsynk batteries, providing 40 kWh of total storage. Tigo module-level optimisation supports performance across the different roof elevations, while SolaSkirt creates a clean, protective perimeter around the arrays.
System specification
Designed for serious solar generation and storage.
Each element works together to maximise usable renewable energy across a large, multi-roof installation.
8.60 kWp of all-black solar PV from the LONGi section of the array.
16.45 kWp of high-output, all-black solar PV from AIKO.
A high-capacity hybrid inverter coordinating solar generation and storage.
40 kWh of total storage capacity for using more generated energy later.
Supports panel-level performance across the installation's roof areas.
A neat perimeter barrier designed to deter birds from nesting beneath the panels.
Installation gallery

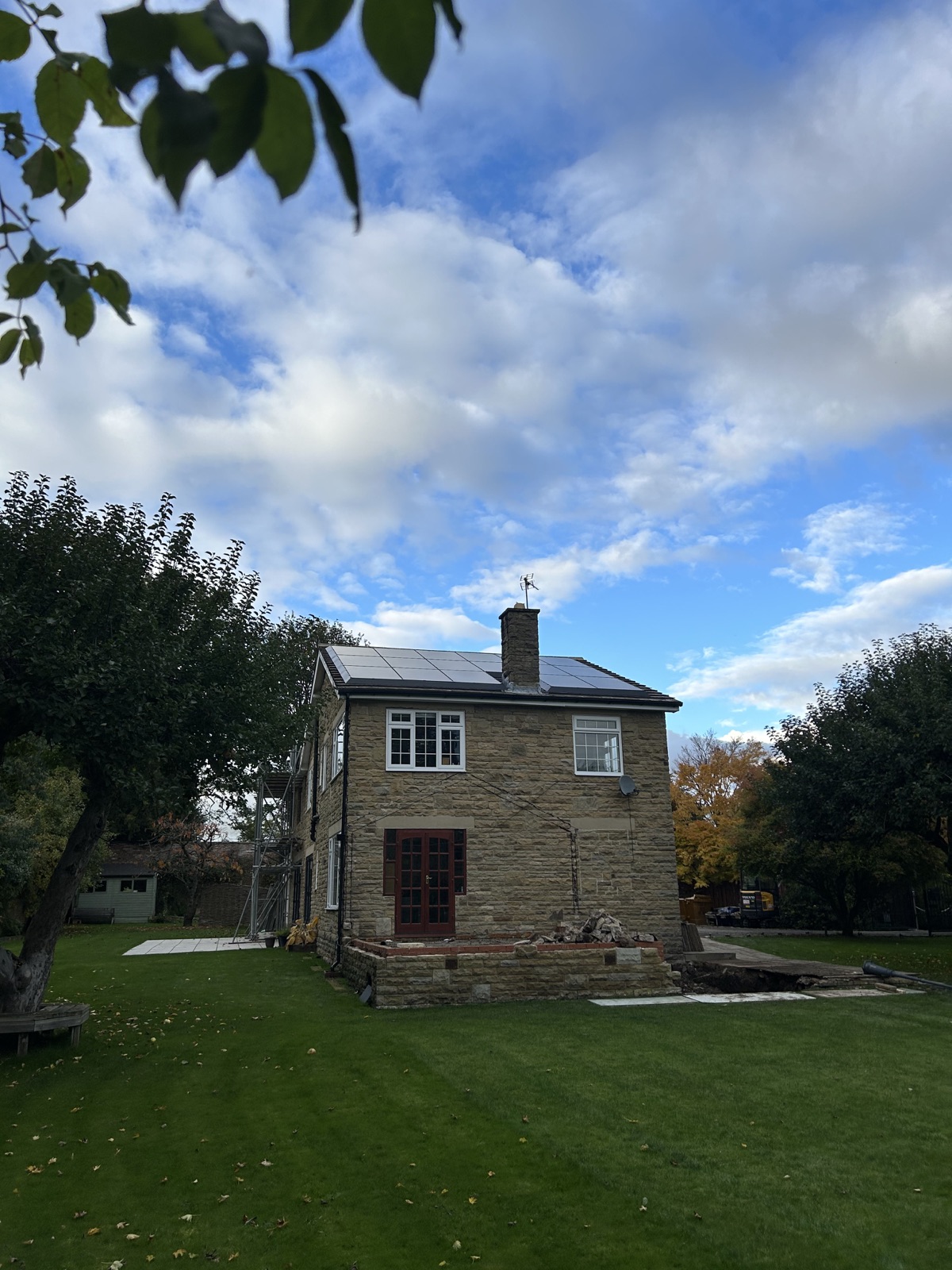

The completed Copgrove system.

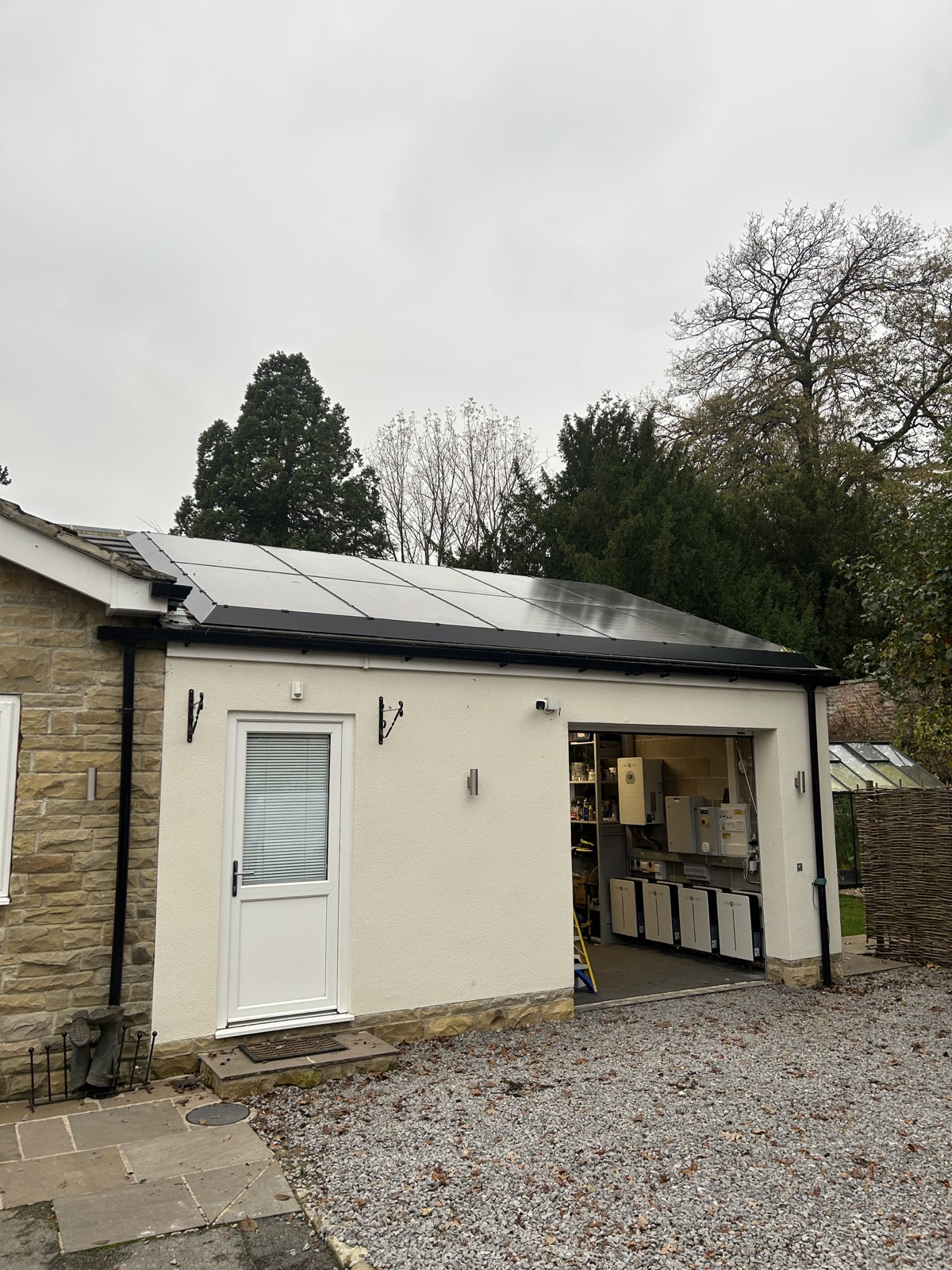

The photographs show the finished all-black arrays, high-capacity Sunsynk equipment and careful roof-edge detailing.
The result
A powerful, well-integrated home energy system.
The completed installation pairs a 25.05 kWp all-black solar array with 40 kWh of Sunsynk storage, giving the property substantial capacity to generate, store and use its own renewable electricity.
- 25.05 kWp of all-black solar PV
- 40 kWh of Sunsynk battery storage
- Tigo optimisation across multiple roof areas
- SolaSkirt protection with a clean finished appearance
